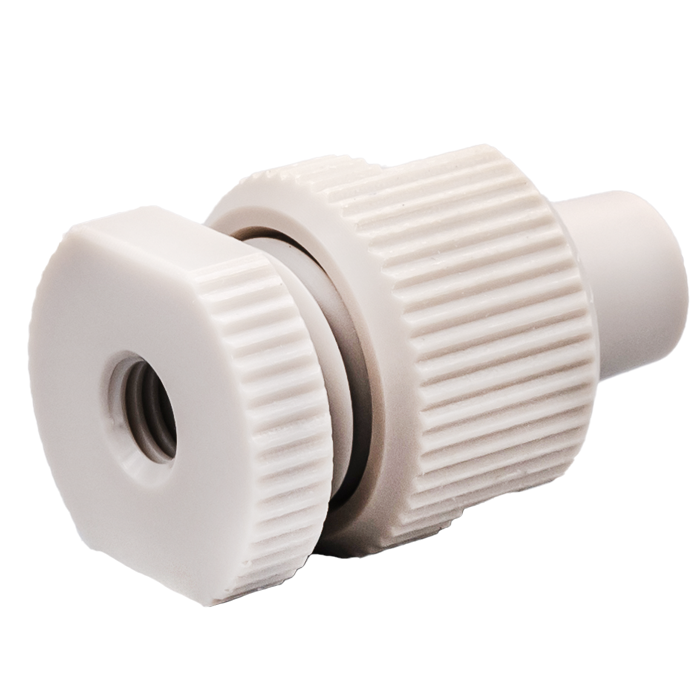

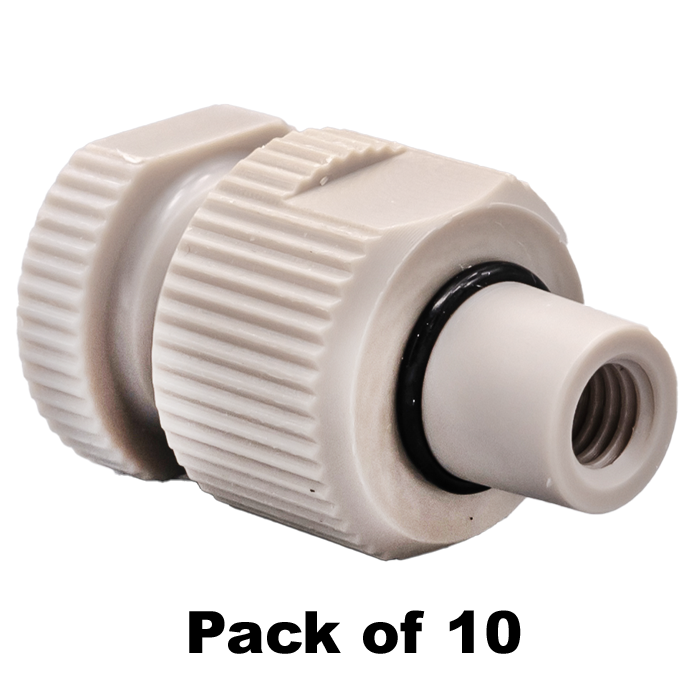

Inline Filter, for HPLC, female connection, replaceable 0.188 inch PEEK filter elements and All-PEEK body. Includes 10 disposable 2 um PEEK filters. ARE-Applied Research brand. 10/PK.
Additional Info:
The 49681-020-010 ARE‑Applied Research Inline Filter is an all‑PEEK inline filtration solution supplied in a multi‑unit pack, engineered for HPLC and LC‑MS systems requiring consistent particulate control and system protection.
Constructed from chemically inert PEEK, this filter uses replaceable 2 µm PEEK filter elements to help reduce peak broadening, minimize background noise, and prevent column clogging. This contributes to extended column life and improved analytical reproducibility.
Each unit is designed for easy inline installation and fast maintenance, making it suitable for routine use and high‑throughput laboratory environments.
Key Features
All‑PEEK Construction
Metal‑free and highly inert
Compatible with aggressive solvents and biocompatible methods
Replaceable 2 µm Filter Elements
PEEK encased filters for efficient particulate removal
Supports cost‑effective maintenance and quick replacement
✅ Replacement option available:
Improves Chromatographic Performance
Helps reduce:
Peak broadening
Background noise
Column clogging
Protects and extends column life
Optimized for HPLC & LC‑MS Systems
Ideal for mobile phase filtration
Supports high‑precision analytical workflows
Easy Installation & Maintenance
Simple inline configuration
Quick, tool‑free filter replacement
Standard Filter Compatibility
Accepts 6.25 mm OD × 1/16 inch thick PEEK encased filters
Allows flexibility across filter porosities
Specifications
Type: Inline HPLC Filter with Replaceable Elements
Housing Material: All‑PEEK
Filter Material: PEEK encased PEEK elements
Pore Size: 2 µm
Filter Dimensions: 6.25 mm OD × 1/16 inch thick
Connection Type: Female
Compatibility: HPLC and LC‑MS systems
Brand: ARE‑Applied Research
Typical Applications
HPLC and LC‑MS systems, mobile phase filtration, column protection, pharmaceutical and environmental analysis, and applications requiring reduced particulates and improved reproducibility
Click HERE for economical pack of 10 replacement filters.
Click HERE for bulk pricing.
